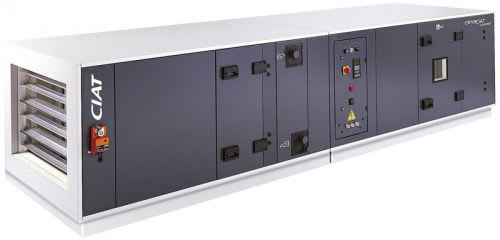

CIAT Air Compact
This air handling unit is particularly well suited to the air conditioning of separate zones. It features high static pressure and requires low ceiling heights. The range features a wide array of housings and accessories. Available in horizontal or vertical configurations for indoor installation.
Description
- All usual functions, such as damper, opacimetric filter, water or electric heating, chilled-water or direct-expansion cooling, ventilation, mixing, distribution plenum, quiet operation, recovery units
- Installation: ceiling or floor (horizontal units) or wall-mounted (vertical units),
- Removable hinged doors,
- Wide selection of additional equipment.
Range:
The range is composed of 3 sizes (thickness: 400 mm).
Available pressure from 100 to 1000 Pa with high performance and minimum sound level
The widths of the 3 sizes of Air Compact 25, 40, 60 are 750 mm, 1310 mm and 1880 mm.
Optimised performance thanks to the control system
Range of use:
Air flow rate : up to 6 000 m3/h
